ALP30 Flux Sprayer



Date:2023-07-14 Clicks:

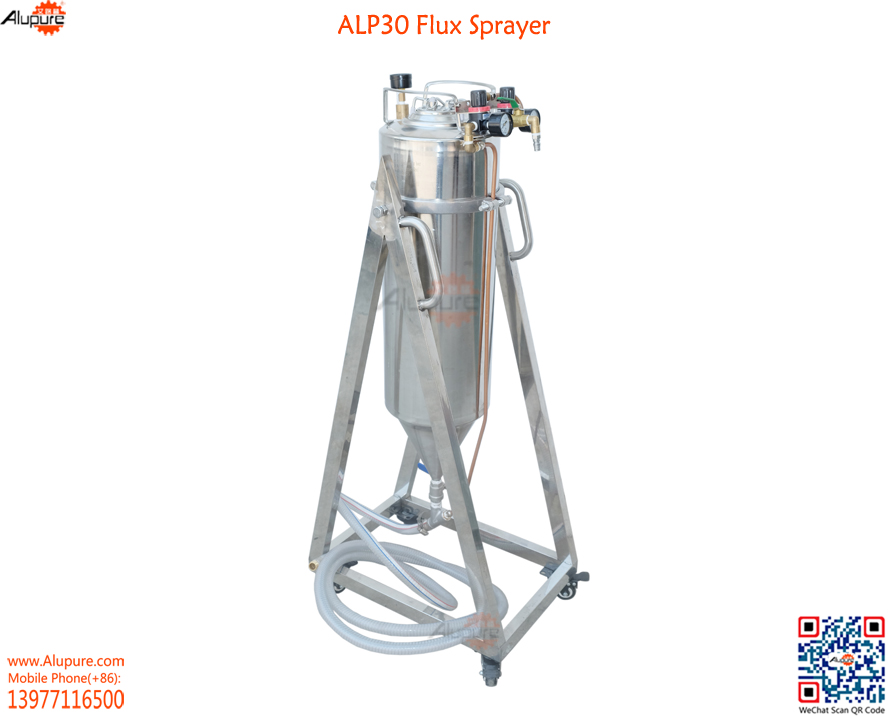

  • ALP30 Flux Sprayer for Aluminum Refining

Device Description

The device can quickly spray refining flux into Al melt, and can adjust the speed of the flux by adjusting different gas pressures, it can provide refining agent for small furnace or transfer ladles or for large melting furnace for rapid refining;

Technical Parameters

1.The tank volume is about 25L;
2.The maximum pressure of the tank is 0.6MPa;
3.Total gas pressure 0.2 ≤ P ≤ 0.6 (MPa);
4.The pressure inside the tank is 0 ≤ P ≤ 0.16 (MPa);
5.Blowing pressure 0 ≤ P ≤ 0.25 (MPa);
6.Powder speed can be faster or lower by adjusting the pressure inside the tank
7.By adjusting the pressure of the gas to control the speed of the flux powder.
8.With the degasser it can directly provides  refining agent to crucibles.


details

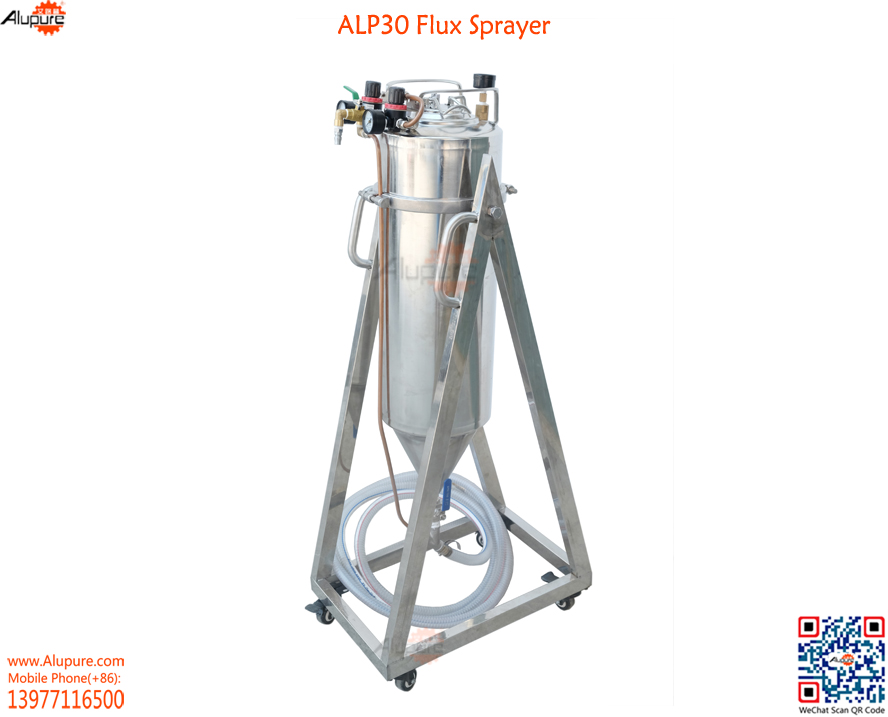

ALP30 Flux Sprayer



ALP30  Main Application



The device can quickly spray refining flux into Al melt, and can adjust

the speed of the flux by adjusting different gas pressures, it can

provide refining agent for small furnace or transfer ladles or for large

melting furnace for rapid refining;



ALP30 Advantages



1.304 stainless steel tank, can be loaded with various refining agents.

2.Quick release sealing cover is more convenient to add powder, can be

  turned 180 degree upside down makes it easier to clean the tank

  remains;

3.Light weight, 20 Kg in weight;

4.Easy to use, it can directly view the pressure of the gas pipes.

5.By setting different gas pressures, the amount and speed of the powder

  can be achieved;

6.Small size, easy to move;

7.Low cost of use and maintenance;



ALP30 Technical Data



1.The tank volume is about 25L;

2.The maximum pressure of the tank is 0.6MPa;

3.Total gas pressure 0.2 P 0.6 (MPa);

4.The pressure inside the tank is 0 P 0.16 (MPa);

5.Blowing pressure 0 P 0.25 (MPa);

6.Powder speed can be faster or lower by adjusting the pressure inside

  the tank;

7.By adjusting the pressure of the gas to control the speed of the flux

  powder.

8.With the degasser it can directly provides  refining agent to

  crucibles.



ALP30 Operation Steps



1.Close the powder outlet valve first, then load the required refining

  agent into the powder spray tank, and fasten the sealing cover to

  ensure the seal is tight.

2.Close the gas circuit main switch on the tank and then connect the

  gas to set the air pressure of the two channels on the tank (the

  specific pressure needs to be set by the customer according to the

  speed of the powder). After setting the air pressure, open the tank.

  Turn on the main switch, after the gas pressure in the tank reaches

  the set pressure, the powder valve is opened and the powder is sprayed

  out. After the refining agent is sprayed out, then insert the refining

  tube into the aluminum solution for refining.

3.After refining, firstly close the powder discharging valve, then take

  the refining tube out of the aluminum molten pool, and then continue

  to ventilate for 1 minute, blow out all the remaining refining agent

  in the tube to prevent blockage, and then close the gas circuit main

  switch on the tank.

4.If you need to open the lid of the tank, please manually depressurize

  the tank first;

5.If it is necessary to clean the tank body, the can body lid can be

  opened and then turned 180 degrees to pour out the flux agent in the

  tank;
