ALP320 Giant Degasser



Date:2023-07-14 Clicks:

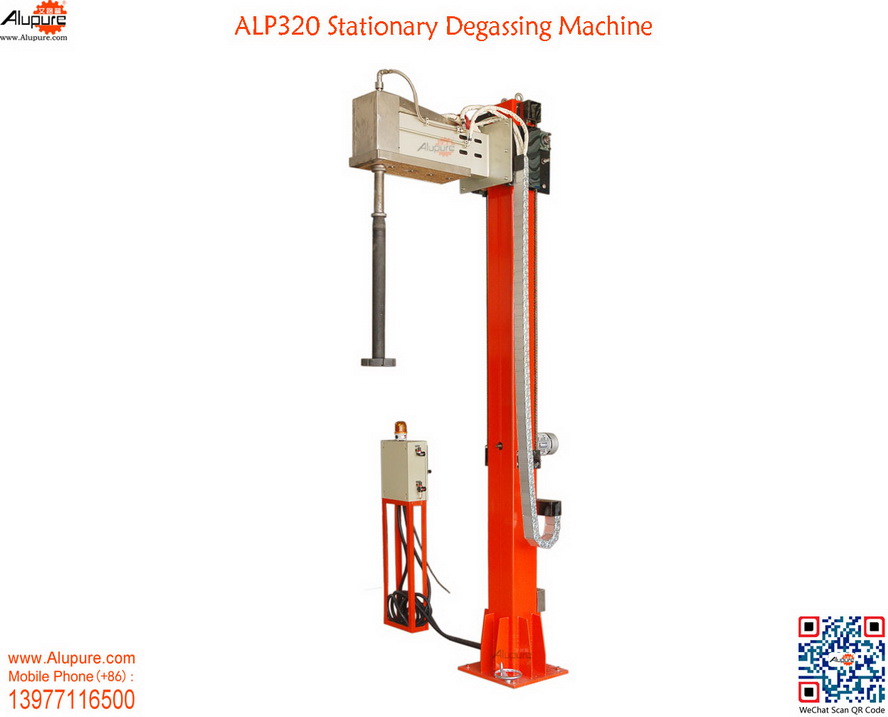

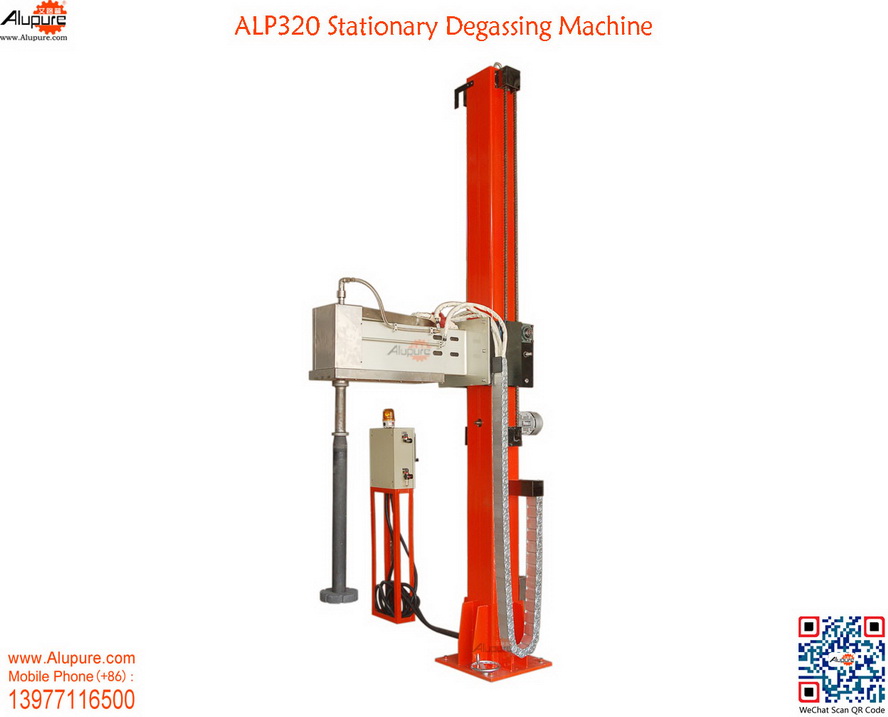

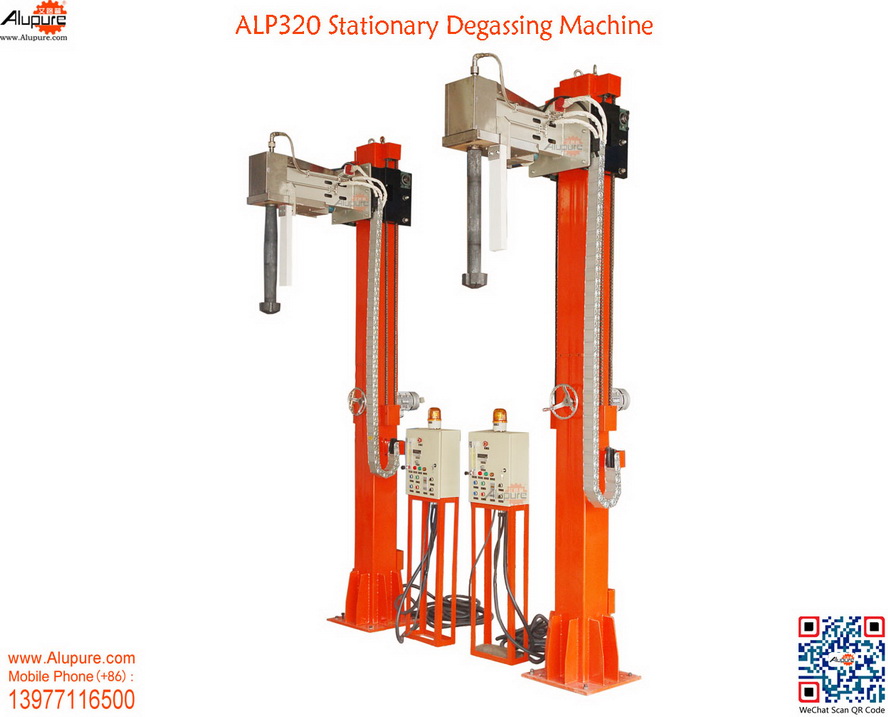

  • ALP320 Stationary Degassing Machine

Device Description

This unit features fixed installation, 250 square tube
as support and dual-chain lift. The structure can be
customized as extra high and suspension extra long to
fit furnaces too high off the ground or with large
inner diameters.

Technical Parameters

1.Application Range: Furnace outer diameter ≤3600mm,
 furnace depth ≤2000mm;
2.Lift Travel: ≤3000mm;
3.Power: 380V~50Hz, 4KW;
4.Rotor Speed: 0~800RPM, adjustable;


details

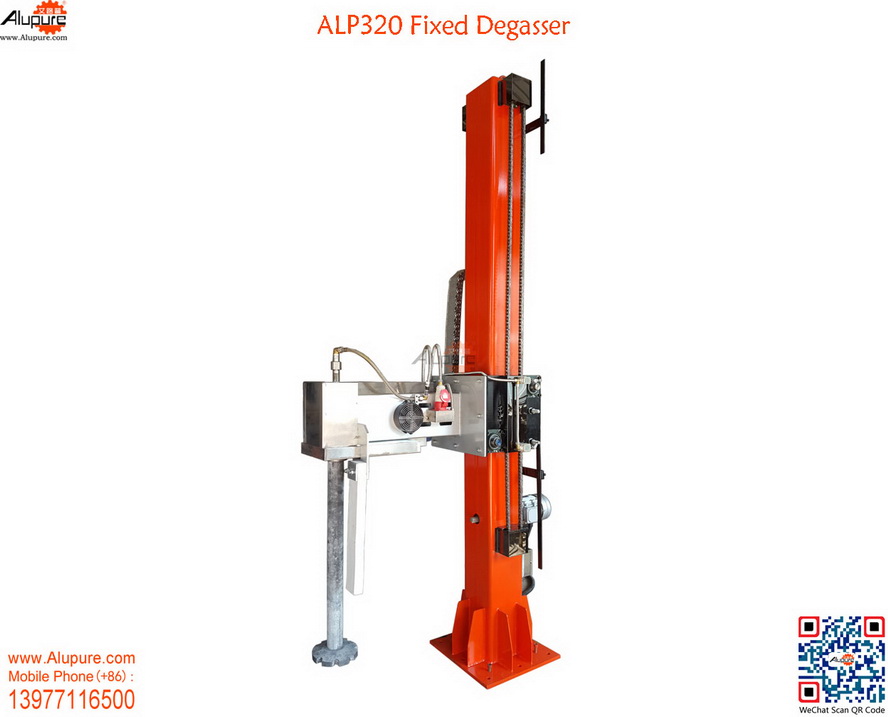

ALP320 Fixed Type Square Column Degasser



ALP320 Main Application



ALP320 is a mechanical-electrical separated fixed type square column degasser equipped with dual-chain lift. Square column as support features a firmer structure, and dual-chain lift, smoother up & down. System is designed especially for extra high furnaces or furnaces placed on platforms. Electric control and degasser are separated for better control. Degassing medium: 99.996% pure nitrogen or argon, provided by gas center and gas cylinders can be set aside the degasser.



ALP300 Mechanical Parameters



1.The system adopts square columns as support, fixed type and immovable. Electric driven degassing arm and dual-chain driven lift.

2.Device height and travel distance can be customized on demand. This system is generally specialized for high-position furnaces.

3.Al Cable carrier protected power cords and gas pipes.

4.Rotor belt driven, speed from 0~600RPM, data display adjustable, time setting available and one button full-auto mode available.

5.Degassing arm can be manually lifted when power down.

6.Low limit switch position can be adjusted to adapt furnace depth.

7. Cooling air device can cool down motor, spindle and bearing, avoiding over heat to damage the machine.

8.With good heat insulation and air cooling by independent cooler fans, the system can be applied to continuous degassing too.



ALP320 Electrical Parameters



1.Mechanical-electrical separated, button press control box.

2.Power: 3-phase 380V50Hz, 4Kw

3.Rotor speed from 0~600RPM, data display adjustable,

   gas flow rate 0.252.5Nm3/H, adjustable.

4.Degassing Medium: Industrial dry nitrogen or argon, 99.996% pure.

5.Degassing gas input pressure: 0.40.6MPa, auto gas replace warning when pressure lower than 0.2Mpa.

6.Manual and auto mode, switchable.

7.Degassing time setting : 0.01S999H, adjustable.

8.Auto degassing under auto mode, auto-stop spinning and auto-lifting after degassing, auto stop gas supply.

9.One button full-auto mode available after parameter setting.

10.Manual emergency shut-down button.



ALP320 Advantages



1.Square columns as support, higher machine can be customized, more suitable for high-position furnaces degassing.

2.Fixed type, can be controlled by separated control box, one device for one furnace.

3. Manual handle is equipped to elevate degassing arm to prevent consumable parts solidifying inALmelt caused by electric lift failure at power down.

4.Easy-to-learn operation, manual/auto mode switchable, one button full-auto mode available.

5.Degassing time settable, auto degassing, light warning after degassing and auto-elevation.

6.Minimum manpower involvement.

7.Efficient usage of nitrogen or argon, less degassing time, automatic degassing.

8.High efficiency degassing, more homogenized melt.

9.Remarkable degassing effects, higher casting yield, improving casts mechanical performance.

10.Best rotate speed and gas volume setting available according to the various melt density.

11.Compact and durable, low cost maintenance.

12. Customized heat insulating covers to reduce heat loss.



ALP320 Degassing Principles



Inject pre-set quantity of inert gas into theALmet through rotating graphite shaft and rotor. The rotor disperses the inert gas into millions of small bubbles, evenly into the melt. Small inert gas bubbles capture hydrogen and nonmetallic impurities, then altogether flow to the melt surface.
