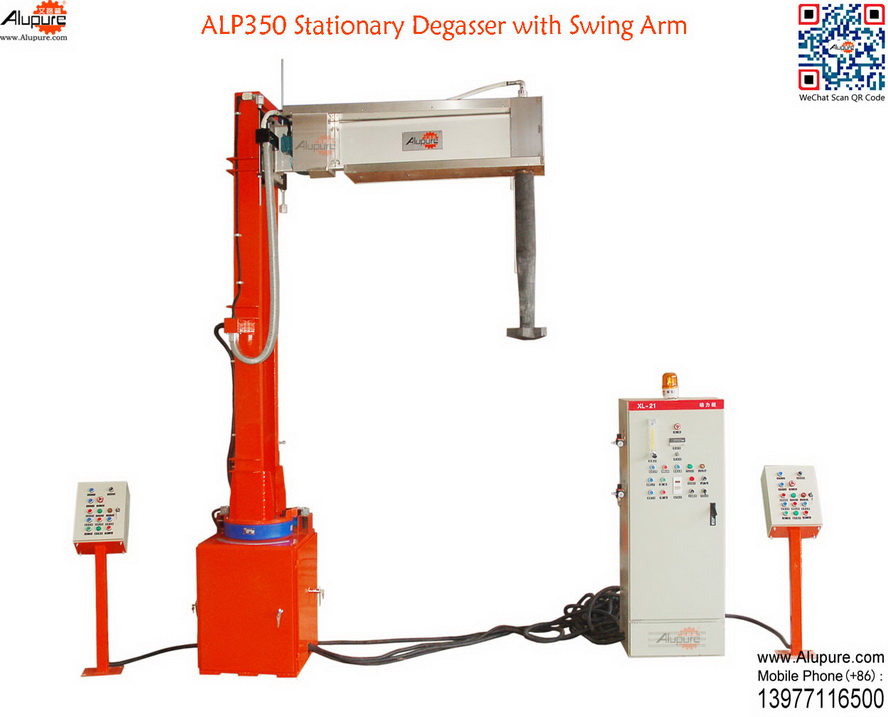

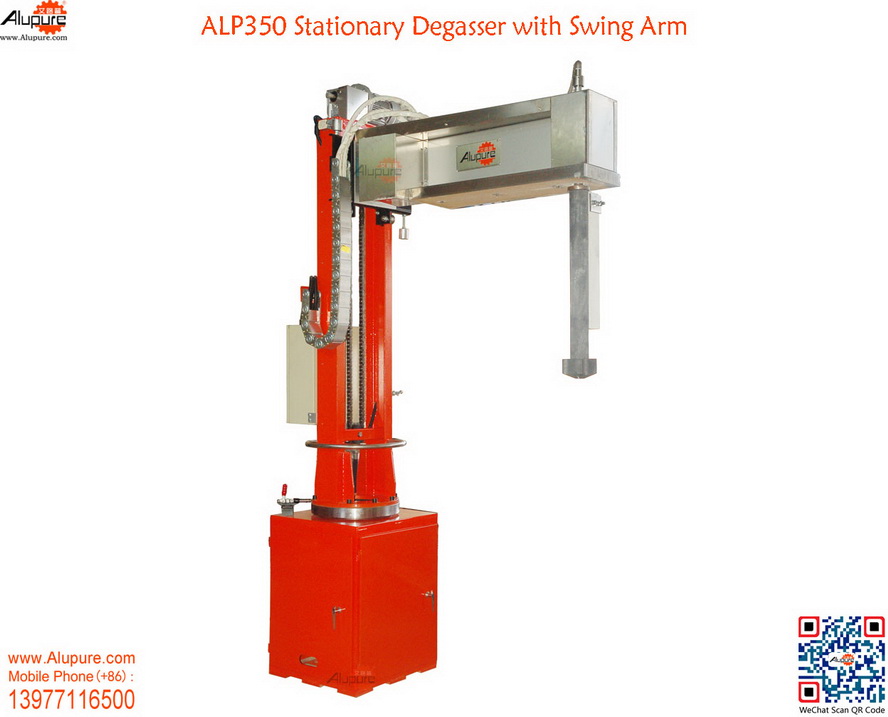

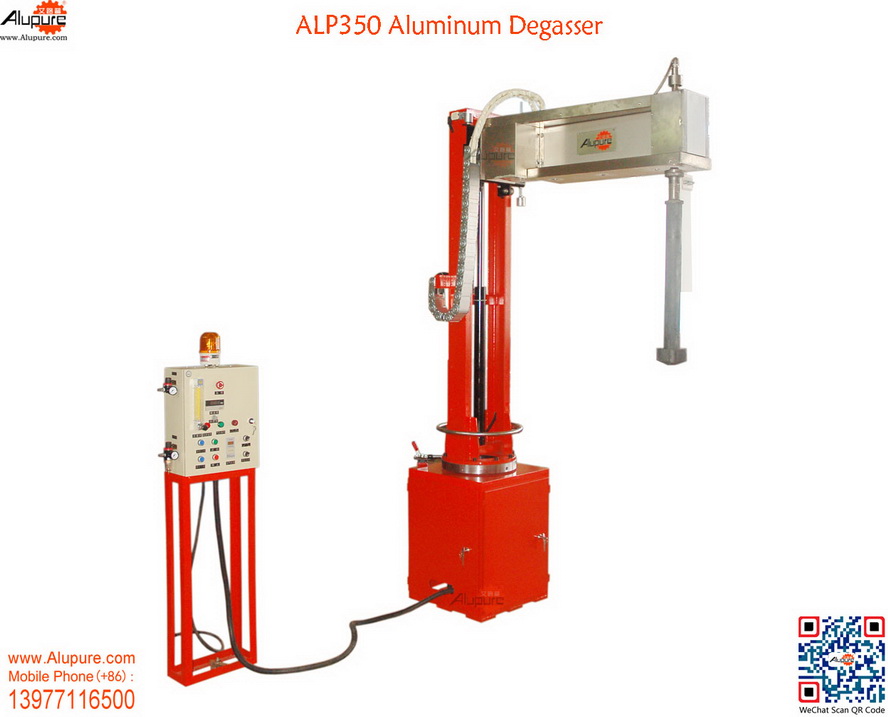

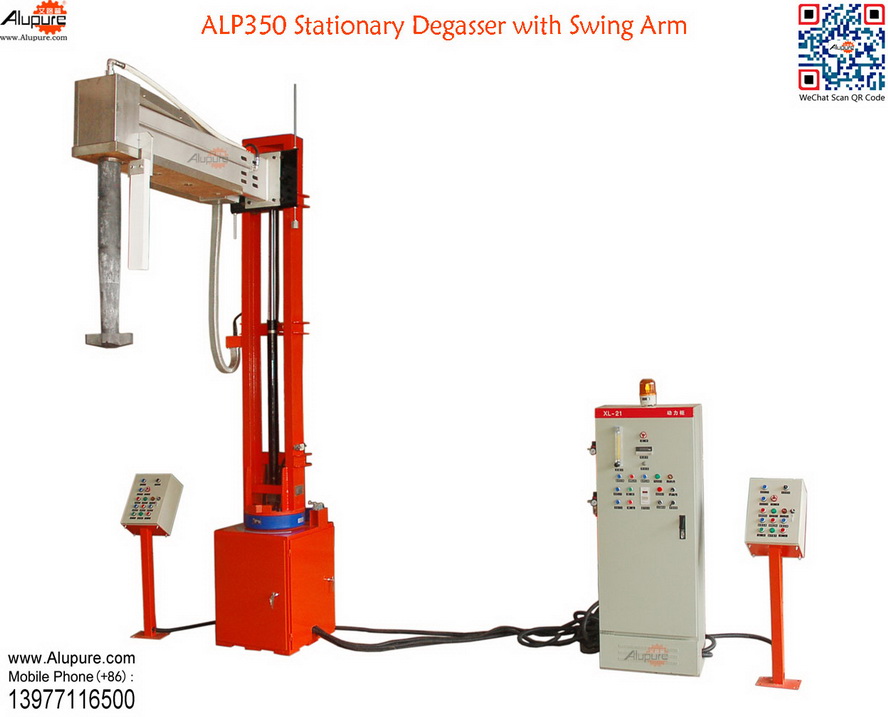

ALP350 Stationary Degasser with Swing Arm



Date:2021-01-04 Clicks:

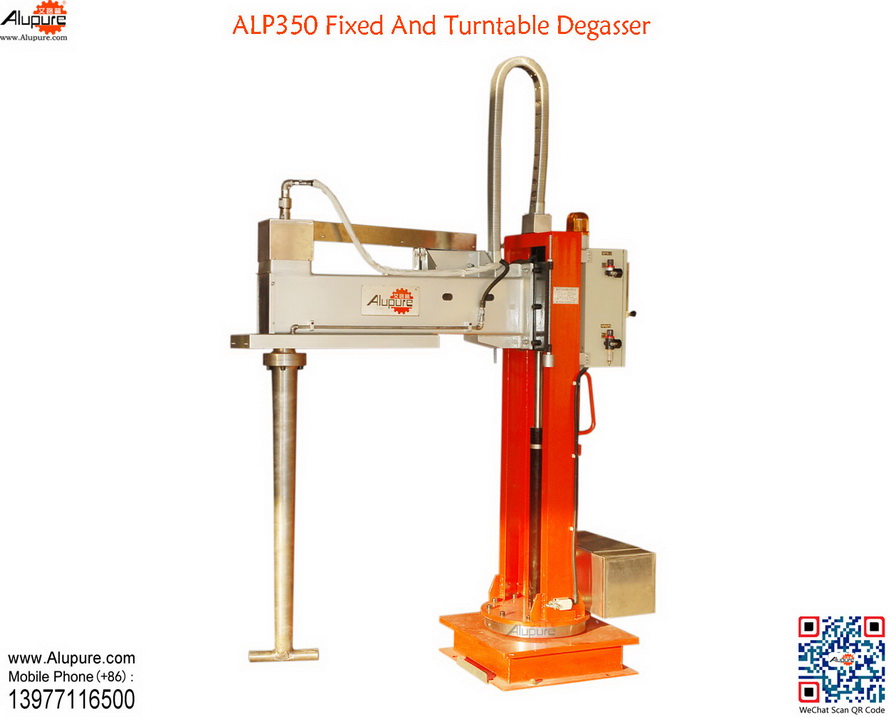

  • ALP350 Fixed And Turntable Degasser

Device Description

ALP350 is a fixed type degasser with manual or
electric revolvable arm. The system is optional
with chain-type lift or hydraulic lift. The model
is majorly applied to smelting furnaces, especially
tumble type furnaces.

Technical Parameters

1.Model Type: Fixed and revolvable;
2.Revolve Type: Manual or electric;
3.Application Range: Furnace outer diameter≤1800mm,
 furnace depth ≤1200mm;
4.Lift Travel: ≤2000mm;
5.Power:  Hydraulic lift: 220V~50Hz, 2KW;
                    Chain lift: 380V~50Hz, 2KW;
6.Rotor Speed: 0~600RPM, adjustable;




details

ALP350 Fixed Type Revolve able Degasser



ALP350 Main Application



ALP350 is a fixed type degasser with electric lift and revolvable arm. The system is optional with chain-type lift or hydraulic lift, also manual or electric revolved . The model can be applied to single specific furnace for online or batch degassing or installed and used among multiple furnaces of the same type for degassing. Degassing medium: 99.996% pure dry nitrogen or argon, provided by gas center or gas cylinders beside the degasser.



ALP350 Mechanical Parameters



1.Fixed type, degassing arm can be turned  90 or 180 degree manually or electrically. The system can be served for a single furnace or shared by two furnaces as degassing station.

2.Machine height, revolve angle and travel range can be customized according to clients furnaces.

3.Hydraulic lift or chain lift.

4.Rotor belt driven, speed from 0~600RPM, data display adjustable, time settable and one button full-auto mode available.

5. Degassing arm can be lifted manually when power is off .

6.Low limit switch can be adjusted to adapt furnaces of different depths, or customized as double low limits switches to fit two or three furnace depths.

7.The device is equipped with independent air cooler for heated key parts to avoid over-heat damages.

8.With good heat insulation and air cooling by independent cooler fans, the system can be applied to online degassing too.



ALP350 Electric Parameters



1.Push button control box.

2.Power: 3-phase 380V50Hz, 3Kw

3.Speed from 0~600RPM, speed display adjustable, gas flow volume 0.252.5Nm3/H, adjustable.

4.Degassing Medium: Industrial dry nitrogen or argon, 99.996% pure.

5.Degassing gas input pressure: 0.40.6MPa, auto gas replace warning when pressure lower than 0.2Mpa.

6.Manual and auto mode, switchable.

7.Degassing time setting : 0.01S999H, adjustable.

8.Auto degassing under auto mode, auto-stop spinning and auto-lifting after degassing,

auot-stop gas supply.

9.One button full-auto mode available after parameter setting.

10.Manual emergency shut-down button.



ALP350 Advantages



1.Fixed type, no push needed, can be used as fixed degassing station for transfer ladles.

2. Degassing arm can be hand-operated up to prevent consumable parts solidifying within

AL melt caused by lift failure at power down.

3. Chain-type/hydraulic electric lift, convenient for rotor shaft positioning and consumable

part replacing

4.Easy-to-learn operation, manual/auto mode switchable, one button full-auto mode available.

5.Degassing time settable, auto degassing, light warning after degassing and auto-elevation.

6. Auto mode requires minimum labor involvement

7.Efficient usage of nitrogen or argon, less degassing time, automatic degassing.

8.High efficiency degassing, more homogenized melt.

9.Remarkable degassing effects, higher casting yield, improving casts

   mechanical performance.

10.Best rotate speed and gas volume setting available according to the various melts density.

11.Compact and durable, low cost maintenance.

12. Customized heat insulating covers can greatly reduce heat loss .



ALP350 Degassing Principles



Inject pre-set quantity of inert gas into theALmet through rotating graphite shaft and rotor. The rotor disperses the inert gas into millions of small bubbles, evenly into the melt. Small inert gas bubbles capture hydrogen and nonmetallic impurities, then altogether flow to the melt surface.
